PCB Reverse Engineering

China's famous PCB clone service!

Send a populated 2 layer PCB, get a clone in Protel .PCB file format in 2-4 days.

The PCB is depopulated and the solder mask is sanded off. The traces on the board are scanned, then converted to a Protel .PCB file. Here's the files we received after reversing a common PIR motion sensor module.

List Price
$75.00

Send a populated 2 layer PCB, get a clone in Protel .PCB file format in 2-4 days.

PCB reverse engineering service is commonly available in China. The PCB is depopulated and the solder mask is sanded off. The traces on the board are scanned, then converted to a Protel .PCB file in an automated process. Hand tweaks are made as needed. Here's an example of the files we received after reversing a common PIR motion sensor module.

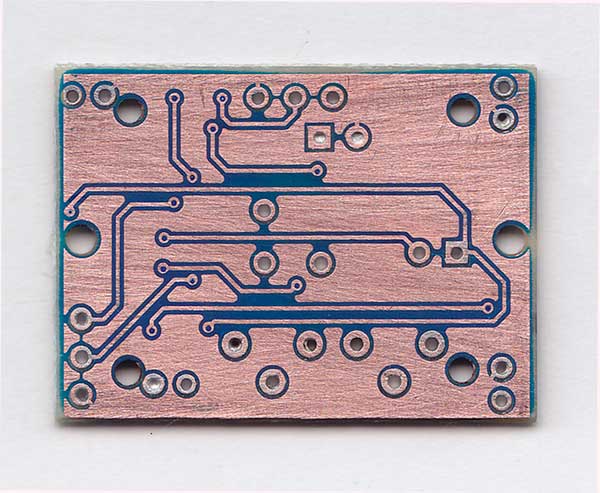

Scanned PIR motion sensor PCB.

Protel .PCB version

To get started just purchase the reverse engineering service, then send us your populated board (or tell us were to get it).

Note the limitations below: this is a clone of the visible traces on the PCB only. It does not include a schematic of the circuit, a list of parts and values, etc.

Our address

Please include your order number (eg 123456) in the address field:

English

Dangerous Prototypes (123456)
A1106 Qunxing Guangchang
Huaqiangbei, Futian
Shenzhen, China 518000

Chinese

深圳市福田区园岭街道红荔路38号群星广场A座1106 (123456)

Limitations

  • Only 2 layer PCBs are supported. Please write for info on 4+ layer PCBs.
  • The process does NOT include a schematic.
  • The process does NOT include a list of parts and values.
  • Only Protel .PCB files are available.
